M-Series Laser Marking Machine
FOOTPRINT
71″ H x 58″ W x 36″ D
16″ MAX
Part Height
AXES
X, Rotational Y, Z & R
Large, complex, multi-zone marking made easy.
With a crane compatible front and side openings, a 360° turntable, and a 180° rotating head, the M-Series machine was designed to quickly and safely mark large, complex, or multi-zone parts. This system features a 28″ programmable travel X-axis and an 18.5″ programmable travel Z-axis, all within one solution.
Industrial-grade construction.
The M-Series Laser Marking Machine frame is constructed using industrial grade, 1″ square steel tubing, welded and powder coated by fabricators at our Flushing, Michigan facility. Its exoskeleton consists of 1/4″ plated steel panels, including the fast, smooth gliding and swinging doors with work safe windows. The M-Series is controlled with Marking Creator 3.0 software installed on a monitor that rests on a double-jointed, swinging arm. It also has industrial-grade casters for portability around any facility.
FRAME
1″ Square Steel Tube
DOORS
Front & Side, Crane Compatible
DASHBOARD
Moveable Arm with Monitor & Controls
Standard Equipment Options for Your Application
Powerful 1064nm fiber laser options.
The M-Series Laser Marking Machine can be equipped with a 20W, 50W, or 100W fiber laser based on your marking requirements.
20W
Fiber/IR
50W
Fiber / IR
100W
Fiber / IR
Variable Pulse
Go beyond fiber.
Our sister company, DPSS Lasers specializes in ultraviolet and Ultra-Fast laser marking systems. With high peak powers, consistent repetition rates, and low thermal damage, UV and Ultra-Fast lasers are ideal for marking and engraving difficult materials, including ceramics, plastics, and metals.
5W & 10W
355 nm UV
IR / UV
Picosecond
IR / UV
Femtosecond
Other Wavelengths
Speed through part setup by adding auto focus to your build.
Auto Focus allows users to accurately adjust scan head height up to 13.5 inches with the push of a button, eliminating the need for manual adjustments and accelerating new part setup.
10X
Faster Setup
+/- 13.5 inches
Eliminate manual door operation.
Add our “Auto Door” feature, allowing the operator to open and close system doors using the “start cycle” button and at “cycle complete.”
GATEWAY TO
Automation
Button & Cycle Start
3-tiered, stacked filtration for particulate elimination.
Through extensive testing and case studies, our partnership with TBH has identified the optimal fume extraction pairings for each of our standard systems. With simple filter replacement and powerful control electronics, the LN265 Fume Extraction Unit ensures industrial safety and health protection when added to your M-Series Laser Marking System.
SAFETY
Protection for Worker Lungs
& Respiratory Tracts
DOWNTIME
Maximize Laser Life &
Minimize Machine Maintenance
Simplify part alignment with a Vision System.
Add a Vision Systems to provide the operator a real-time preview of your part and marking entity.
BASIC
Mark & Part Alignment
ADVANCED
Barcode Reading
& Grading
PRO
Recognition, Rotation & Orientation

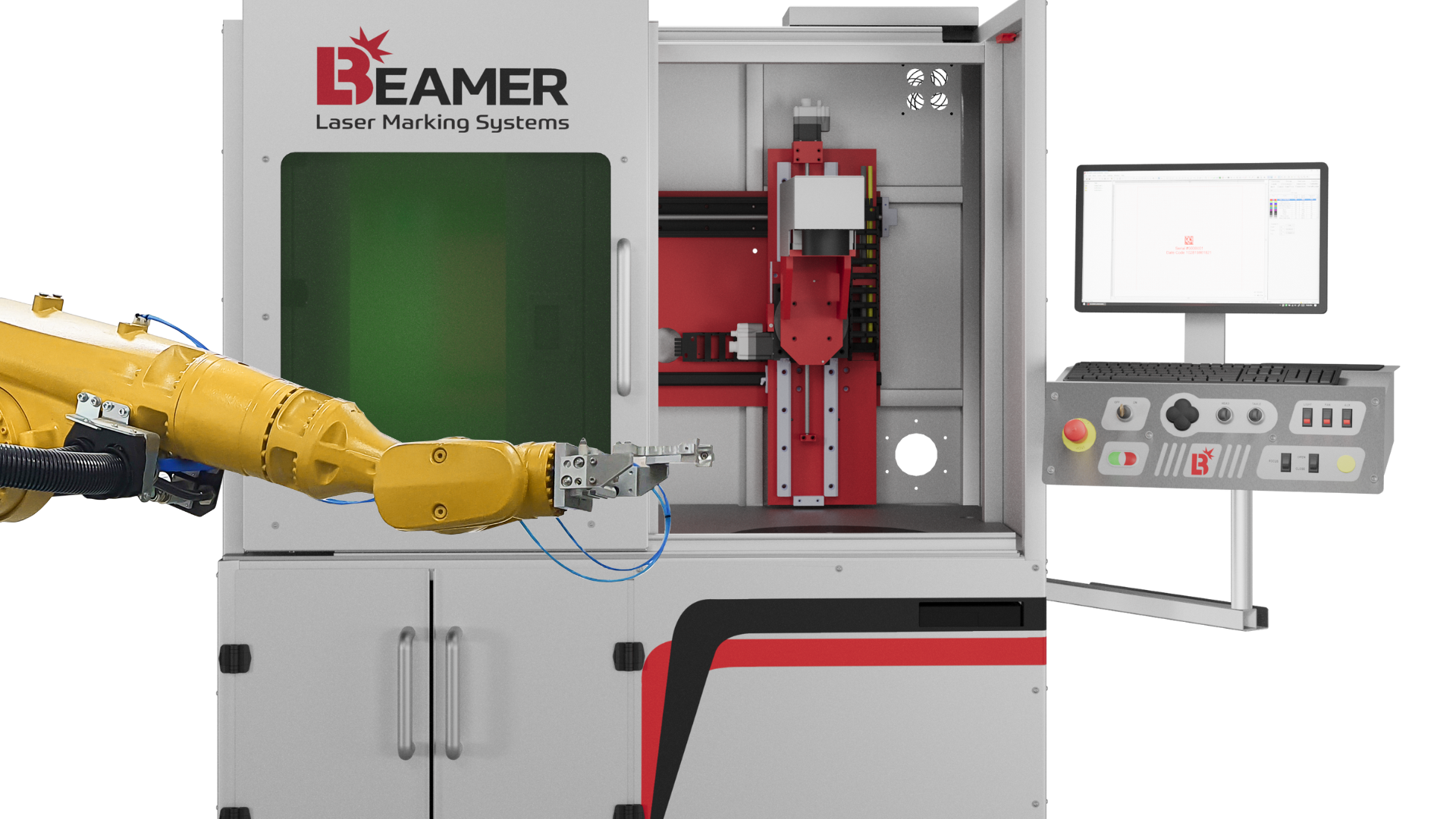

Automation ready from the start.
Regardless of the configuration of your machine equipment upon initial purchase, it is automation ready and completely expandable via a fully programmable PLC.
PLC
Fully Programmable
Robotics, Hopper Loaders & Conveyers
Complex Machine Vision & Barcode Reading
Easy to Use Software
The computer mounted via swinging arm on the B-Series is preloaded with our graphical process-oriented software, Marking Creator 3.0. The Marking Creator interface allows users to precisely control laser parameters, build automation scripts, and edit images and text artwork with ease.
PENS
18 Preset & 255+ Customizable
UOM
Quickly change between metric & imperial
True Type Fonts
Sample Testing
