S-Series Laser Marking Machine

OPENING

17″ H x 22.5″ W

PART HEIGHT

5.25″ Max

AXES

Z-Axis

Our most compact machine, built for worktop use.

The S-Series Benchtop System is the high-quality, cost-effective part marking answer for small spaces with a low budget. Its compact design allows for table-topping with a laptop control in common marking workspaces, such as shipping, packaging, and inventory rooms. Plus, the S-Series has a new door designed for quick part loading and unloading.

FOOTPRINT

28″ H x 25″ W x 28″ D

OPENING

17″ H x 22.5″ W

Industrial-grade construction.

The S-Series Laser Marking System frame is welded and powder coated by fabricators at our Flushing, Michigan facility. Its exoskeleton consists of 1/4″ plated steel panels, including a smooth, fast gliding doors with work safe window. Due to its small 28 inch by 25 inch footprint, the S-Series is designed to rest upon a bench or countertop, and to be controlled with Marking Creator 3.0 software installed on a laptop or adjacent desktop.

FRAME

1″ Square Steel Tube

DOOR

Updated Lift Style

DASHBOARD

Laptop Controlled

Standard Equipment Options for Your Application

Our Technical Sales Engineers will discuss specific application requirements and determine the standard equipment options that will optimize your budget.

Easily adjust focus with a scissor table.

Add a mounted scissor table to the base of the S-Series that can raise and lower parts into focus against the stable laser.

10X

Faster Setup

5.25″ Max Part Height

Eliminate manual door operation.

Add our “Auto Door” feature, allowing the operator to open and close system doors using the “start cycle” button and at “cycle complete.”

GATEWAY TO

Automation

Button & Cycle Start

Powerful 1064nm fiber laser options.

The S-Series Laser Marking Machine can be equipped with a 20W, 50W, or 100W fiber laser, based on your marking requirements.

20W

Fiber / IR

50W

Fiber / IR

100W

Fiber / IR

Variable Pulse

Go beyond fiber.

Our sister company, DPSS Lasers, specializes in ultraviolet and ultra-fast laser marking systems. With high peak powers, consistent repetition rates, and low thermal damage, UV and Ultra-Fast lasers are ideal for marking and engraving difficult materials, including ceramics, plastics, and metals.

5W & 10W

355 nm UV

IR / UV

Picosecond

IR / UV

Femtosecond

Other Wavelengths

Simplify part alignment with a Vision System.

Add a Vision Systems to provide the operator a real-time preview of your part and marking entity.

BASIC

Mark & Part Alignment

ADVANCED

Barcode Reading
& Grading

PRO

Recognition, Rotation & Orientation

3-tiered, stacked filtration for particulate elimination.

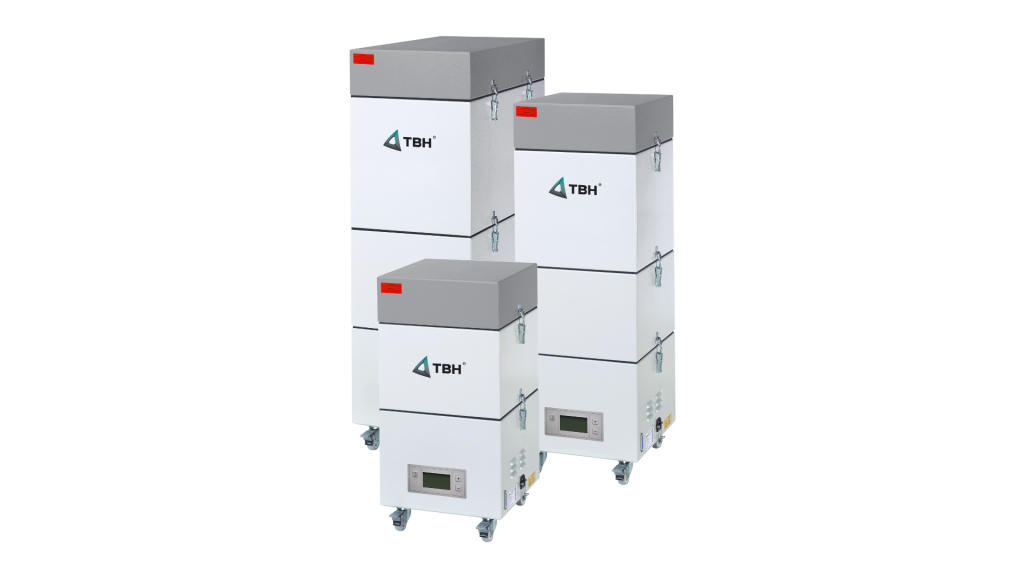

Through extensive testing and case studies, our partnership with TBH has identified the optimal fume extraction pairings for each of our standard systems. With simple filter replacement and powerful control electronics, the BFR100 Fume Extraction Unit ensures industrial safety and health protection when added to your S-Series Laser Marking System.

SAFETY

Protection for Worker Lungs
& Respiratory Tracts

DOWNTIME

Maximize Laser Life &
Minimize Machine Maintenance

Mark while rotating 360+ degrees.

Rotaries provide the ability to mark 360-degrees around any diameter size while moving. Standard rotary options include: Manual 3-Jaw, Air Powered 3-Jaw, 5C Collet Type, and Heavy Duty.

360° MARKING

Rotate & Mark Simultaneously

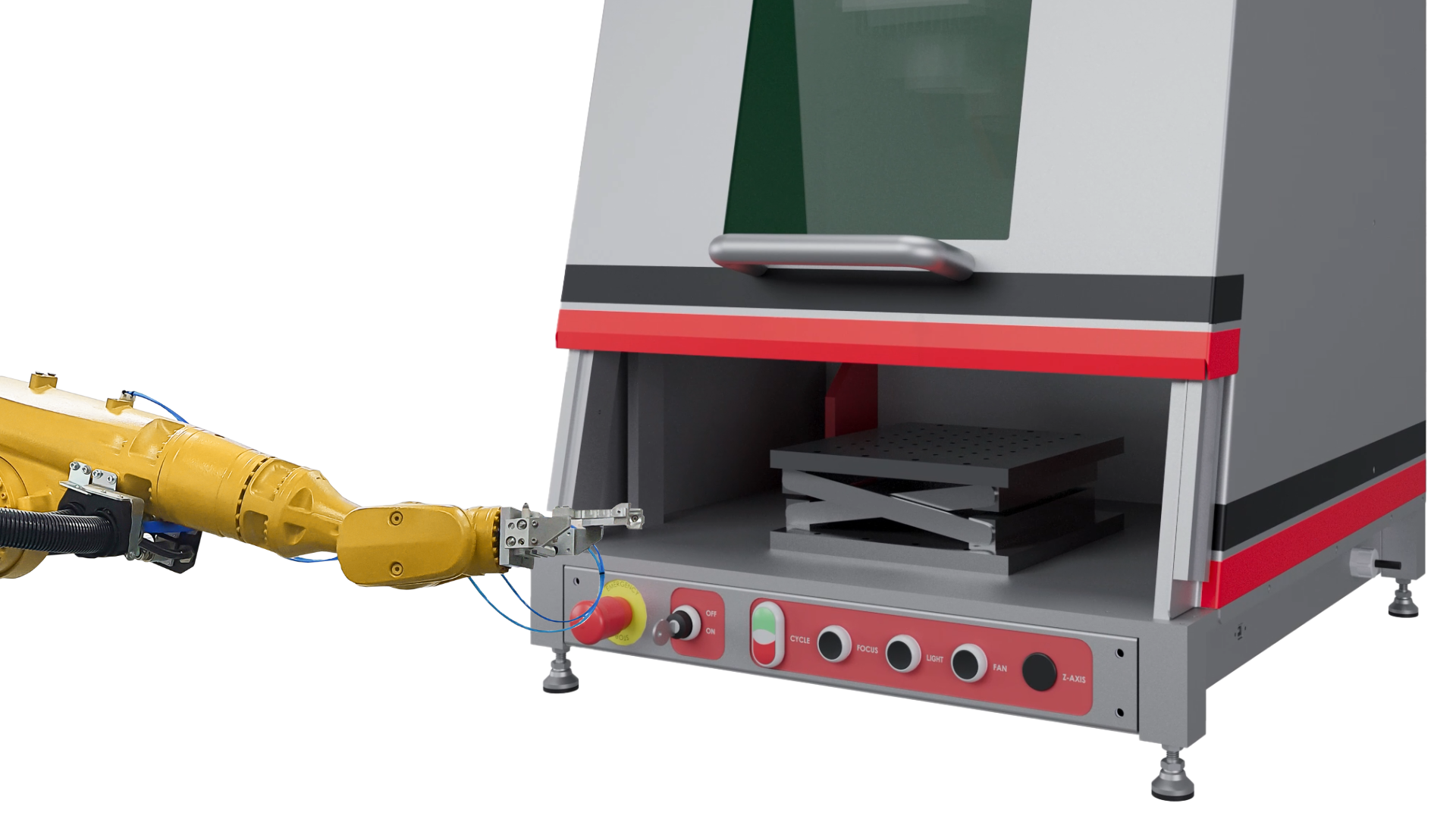

Automation ready from the start.

Regardless of the configuration of your machine equipment upon initial purchase, it is automation ready and completely expandable via a fully programmable PLC.

PLC

Fully Programmable

Robotics, Hopper Loaders & Conveyers

Complex Machine Vision & Barcode Reading

Easy to use software.

The computer mounted via swinging arm on the S-Series is preloaded with our graphical process-oriented software, Marking Creator 3.0. Marking Creator 3.0 allows users to precisely control laser parameters, build automation scripts, switch between metric and imperial units of measure, and edit images and text with ease.

PENS

18 Preset & 255+ Customizable

UOM

Quickly change between metric & imperial

True Type Fonts

Sample Testing

Contact a Technical Sales Engineer to Configure Your Machine

Our Technical Sales Engineers will discuss specific application requirements and determine the best laser marking solution for your team.
